Klämhylsa SKF
H

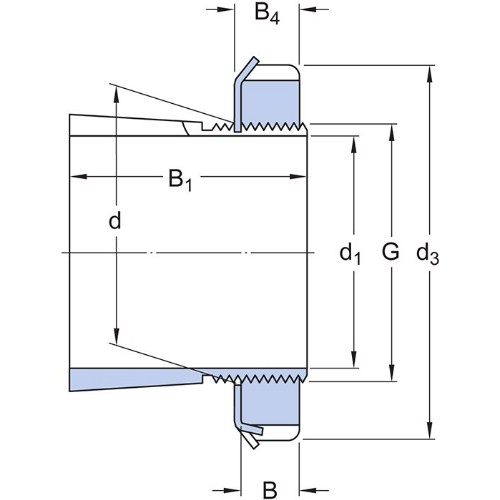

Komplett klämhylsa med låsmutter KM och låsbricka MB, med metriska mått. Är de mest använda komponenterna för att fixera lager med koniskt hål på ett cylindriskt säte, eftersom de kan användas på släta axlar eller axlar med ansats. Slitsat utförande. Enkel att montera. Konicitet 1:12.

BIG-artnr

34082073

Modell

H 204

Gänga

M20x1,0

Enhet

Förp

Beskrivning

SKF Klämhylsa

Visa mer information

Klämhylsa SKF H
Modell		H 204	H 205	H 305	H 2305	H 206	H 306	H 2306	H 207	H 307	H 2307	H 208	H 308	H 2308	H 209
d1	mm	17	20	20	20	25	25	25	30	30	30	35	35	35	40
d	mm	20	25	25	25	30	30	30	35	35	35	40	40	40	45
d3	mm	32	38	38	38	45	45	45	52	52	52	58	58	58	65
B1	mm	24	26	29	35	27	31	38	29	35	43	31	36	46	33
B	mm	6	7	7	7	7	7	7	8	8	8	9	9	9	10
B4	mm	7	8	8	8	8	8	8	9	9	9	10	10	10	11
G		M20x1,0	M25x1,5	M25x1,5	M25x1,5	M30x1,5	M30x1,5	M30x1,5	M35x1,5	M35x1,5	M35x1,5	M40x1,5	M40x1,5	M40x1,5	M45x1,5
Modell		H 309	H 2309	H 210	H 310	H 2310	H 211	H 311	H 2311	H 212	H 312	H 2312	H 213	H 313	H 2313
d1	mm	40	40	45	45	45	50	50	50	55	55	55	60	60	60
d	mm	45	45	50	50	50	55	55	55	65	65	65	65	65	65
d3	mm	65	65	70	70	70	75	75	75	80	80	80	85	85	85
B1	mm	39	50	35	42	55	37	45	59	38	47	62	40	50	65
B	mm	10	10	11	11	11	11	11	11	11	11	11	12	12	12
B4	mm	11	11	12	12	12	12,5	12,5	12,5	12,5	12,5	12,5	13,5	13,5	13,5
G		M45x1,5	M45x1,5	M50x1,5	M50x1,5	M50x1,5	M55x2,0	M55x2,0	M55x2,0	M60x2,0	M60x2,0	M60x2,0	M65x2,0	M65x2,0	M65x2,0
Modell		H 314	H 215	H 315	H 2315	H 216	H 316	H 2316	H 217	H 317	H 2317	H 218	H 318	H 2318	H 219
d1	mm	60	65	65	65	70	70	70	75	75	75	80	80	80	85
d	mm	70	75	75	75	80	80	80	85	85	85	90	90	90	95
d3	mm	92	98	98	98	105	105	105	110	110	110	120	120	120	125
B1	mm	52	43	55	73	46	59	78	50	63	82	52	65	86	55
B	mm	12	13	13	13	15	15	15	16	16	16	16	16	16	17
B4	mm	13,5	14,5	14,5	14,5	17	17	17	18	18	18	18	18	18	19
G		M70x2,0	M75x2,0	M75x2,0	M75x2,0	M80x2,0	M80x2,0	M80x2,0	M85x2,0	M85x2,0	M85x2,0	M90x2,0	M90x2,0	M90x2,0	M95x2,0
Modell		H 319	H 2319	H 220	H 320	H 3120	H 2320	H 222	H 322	H 3122	H 2322	H 3024	H 3124	H 2324	H 3026
d1	mm	85	85	90	90	90	90	100	100	100	100	110	110	110	115
d	mm	95	95	100	100	100	100	110	110	110	110	120	120	120	130
d3	mm	125	125	130	130	130	130	145	145	145	145	145	155	155	155
B1	mm	68	90	58	7	76	97	63	77	81	105	72	88	112	80
B	mm	17	17	18	18	18	18	19	19	19	19	20	20	20	21
B4	mm	19	19	20	20	20	20	21	21	21	21	22	22	22	23
G		M95x2,0	M95x2,0	M100x2,0	M100x2,0	M100x2,0	M100x2,0	M110x2,0	M110x2,0	M110x2,0	M110x2,0	M120x2,0	M120x2,0	M120x2,0	M130x2,0
Modell		H 3126	H 2326	H 3028	H 3128	H 2328	H 3130	H 3132	H 2332	H 3034	H 3134	H 3138
d1	mm	115	115	125	125	125	135	140	140	150	150	170
d	mm	130	130	140	140	140	150	160	160	170	170	190
d3	mm	165	165	165	180	180	195	210	210	200	220	240
B1	mm	92	121	82	97	131	111	119	147	101	122	141
B	mm	21	21	22	22	22	24	25	25	26	26	28
B4	mm	23	23	24	24	24	26	27,5	27,5	28,5	28,5	30,5
G		M130x2,0	M130x2,0	M140x2,0	M140x2,0	M140x2,0	M150x2,0	M160x3,0	M160x3,0	M170x3,0	M170x3,0	M190x3,0


34082073	H 204	M20x1,0	17	20	24

28586485	H 205	M25x1,5	20	25	26

13156054	H 205	M25x1,5	20	25	26

28586824	H 305	M25x1,5	20	25	29

13156609	H 305	M25x1,5	20	25	29

28586634	H 2305	M25x1,5	20	25	35

28586493	H 206	M30x1,5	25	30	27

13156062	H 206	M30x1,5	25	30	27

28586832	H 306	M30x1,5	25	30	31

13156641	H 306	M30x1,5	25	30	31
